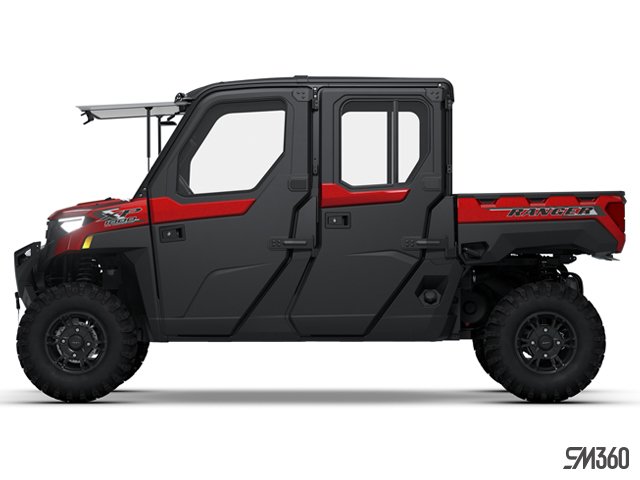

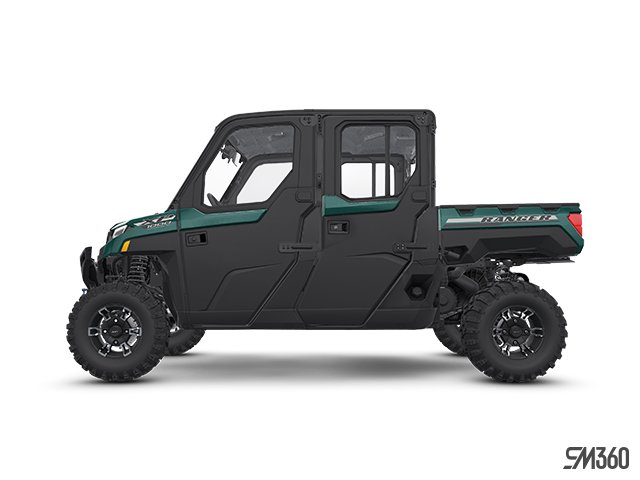

2026 Ranger XP1000 NORTHSTAR EDITION Crew Ultimate at Jean Dumas Maximum Sport

Standard

• Front/Rear Brakes - 4-wheel hydraulic disc with dual-bore front and rear calipers
• Parking Brake - Park in-transmission

Standard

• Cylinders Displacement : 999cc
• Horsepower : 82 HP
• Cooling : Liquid
• Fuel System/Battery : Electronic Fuel Injection
• Drive System Type : High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode
• Transmission/Final Drive : Gen 2 Automatic PVT H/L/N/R/P; Shaft
• Engine Type : 4-stroke twin cylinder DOHC

Standard

• Bed Box Dimensions - 36.75 x 54.25 x 12.5" (93 x 138 x 32 cm)
• Box Capacity - 600 lbs. (272 kg)
• Curb Weight - 2617 lbs. (1187 kg)
• Estimated Dry Weight - 2,485 lbs. (1127 kg)
• Fuel Capacity - 11.5 gal (43.5 L)
• Ground Clearance - 14" (36 cm)
• Towing Capacity - 2,500 lbs. (1134 kg)
• Hitch Type - Standard 2" (5 cm) receiver
• Overall Vehicle Size (L x W x H) - 152 x 65 x 79.5" (386 x 165 x 201 cm)
• Payload Capacity - 1,275 lbs. (578 kg)
• CA Models: 1,100 lbs. (499 kg)
• Person Capacity - 3
• Turning Radius - 17.5' (5.3 m)
• Wheelbase - 113" (287 cm)

Standard

• Front Tires - 29 x 9-14; Pro Armor X Terrain
• Rear Tires - 29 x 11-14; Pro Armor X Terrain
• Tire Ply Rating - 8-ply
• Wheels - 14" aluminum

Standard

• Cargo System – Gas-assist dump box with Lock & Ride accessory integration
• Warranty – 2-year limited warranty
• Security – Polaris P.A.S.S. anti-theft system
• Winch – 4,500 LB Winch with synthetic rope, Auto Stop and wireless remote
• Vehicle Protection – Large steel bumper, full-coverage skid plate, A-arm guards
• Audio System – JBL Trail Pro 2000 audio
• Touch Screen Display – 7" Display, Powered by RIDE COMMAND
• Factory rear camera
• Driver Instrumentation – Dual-sweep analog dials with 4" LCD rider information center: user selectable blue/red backlighting and brightness, passcode protection, programmable service intervals, speedometer, programmable speed limiting, tachometer, odometer, tripmeter, clock, hour meter, gear indicator, fuel gauge, coolant temperature, voltmeter, service indicator and codes, seat belt reminder
• Seat Type – 6-person, dual-row, bolstered bench seats with 3-point harness and adjustable driver seat
• Steering – Tilt adjustment
• Electronic Power Steering – High-output EPS
• Cab Components – Factory-installed cab system with powered doors, roof, glass tip-out windshield, glass rear panel, rearview mirror, windshield wiper/washer, and sound insulation materials
• Heat and/or Air Conditioning – Factory-installed heat, AC, defrost
• Speed Limiting – Speed Limiting Controlled in RIDE COMMAND
• Lighting – Dual LED headlights, 1,250-lm low beam, 2,300-lm high beam, dual LED taillights
• Electrical System – 140-amp charging system, Polaris Pulse electrical system (6-position hood and 6-position roof), USB charger, 12V accessory outlet, battery trickle-charging port
• Door Type – Powered window front doors, crank window rear doors

Optional

• Connected Vehicle Services

Standard

• Front Suspension - Dual A-arm, 10" (25.4 cm) travel
• Rear Suspension - Dual A-arm, 10" (25.4 cm) travel
